Sliding Rack Modular Bookshelf — Laser Cutting Vector File

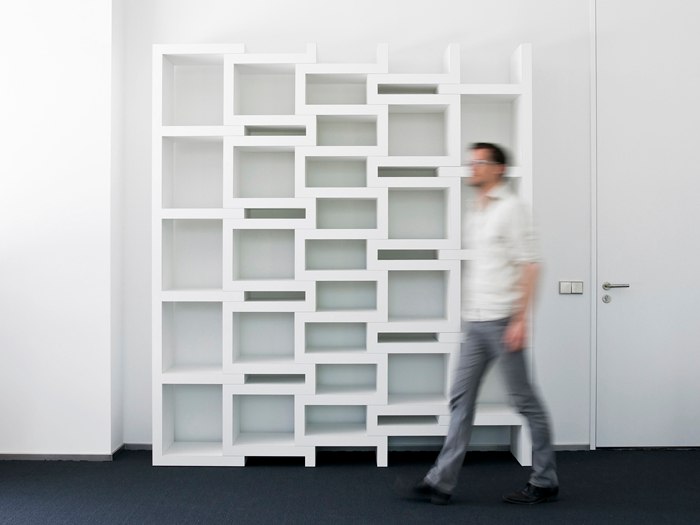

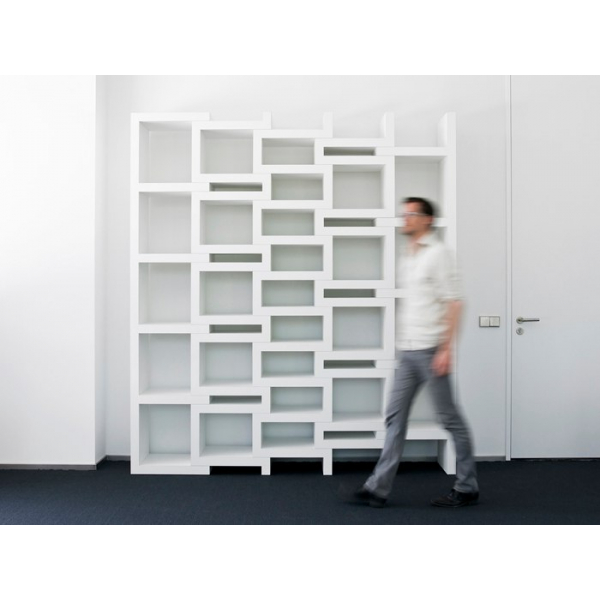

High?precision vector template for a modern sliding rack / modular bookshelf — ready for laser cutting and CNC fabrication. This digital download contains fully editable vector files to produce the large geometric shelving unit shown in the photo. Ideal for makers, furniture designers, and small woodworking shops with CO2 laser cutters, CNC routers, or panel saws — the design is optimized for sheet material production from plywood, MDF or acrylic.

What you get:
- Editable vector files: SVG, DXF, AI, EPS and PDF (layered and grouped for easy use)
- Kerf-compensated cutting lines and numbered parts for quick assembly
- Layouts optimized for standard sheet sizes and nesting to minimize waste
- Assembly diagram and parts list; optional joinery variants for 6–18 mm materials

Recommended materials and settings:
- Plywood, birch, MDF (6–18 mm), acrylic 3–10 mm
- CO2 laser (recommended), CNC router; parameters depend on material and machine — files are prepared with common kerf settings and easily adjustable in your CAD/CAM software.

Benefits:
- Instant digital delivery: download, edit to scale, and cut on your equipment
- Scalable modular design — make one unit or combine multiple racks for larger installations
- Perfect for retail displays, home libraries, office partitions, or custom furniture projects

This product is a digital vector template only — no physical item will be shipped. Files are for personal and commercial production (small batch manufacturing); see license details in the download package. If you need a custom size, material-specific adjustments, or CNC toolpaths, I offer paid customization services.
